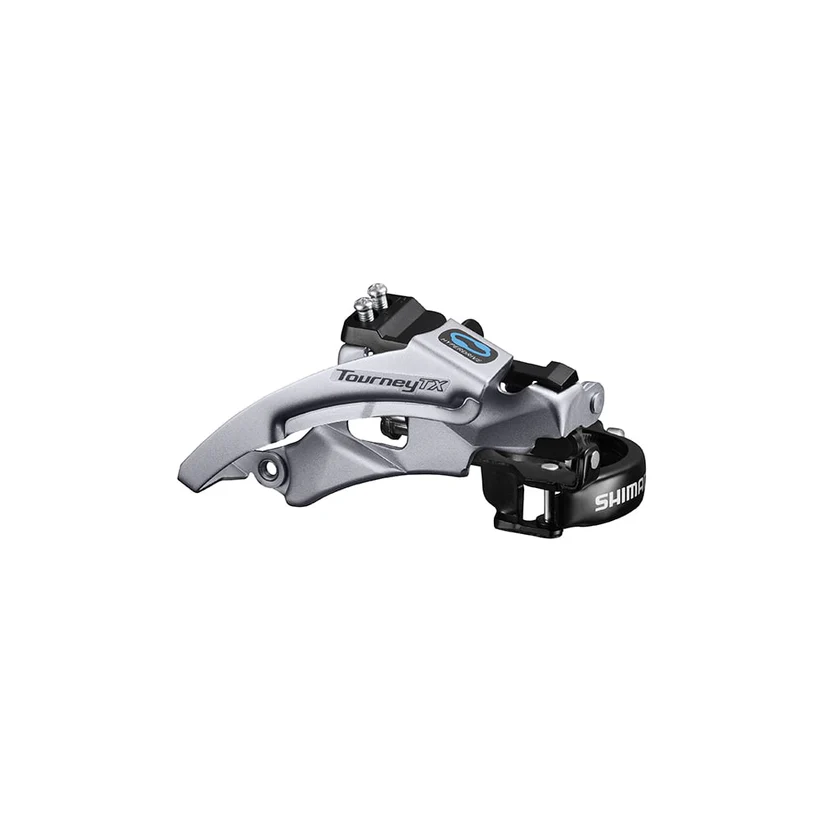

Shimano Front Derailleur FD TX 800 Dual-Pull (EFDTX800TSX6)

Description

Key Features

• Smooth Indexed Shifting: Optimized for Shimano HG 7/8-speed chains and drivetrains, ensuring accurate front gear changes with minimal effort.

• Top Swing, Dual-Pull Design: The top swing mechanism increases rigidity and allows for both top and bottom cable routing, simplifying installation on frames with different layouts.

• Wide Compatibility: Fits most frames with clamp band mounts (supports 28.6 mm, 31.8 mm, and 34.9 mm with included adapters), making it easy to install on a range of bikes.

• Optimized Geometry: Designed for use with chainrings up to 42T or 48T, 47.5 mm to 50 mm chainlines, and typical MTB/trekking frame angles — delivering reliable shifting even under load.

• Durable Construction: Built with resilient materials to withstand everyday use and provide long-lasting performance on casual rides or daily commutes.

⚙️ Technical Specifications

• Series: Shimano Tourney TX800

• Model: FD-TX800

• Front Speeds: 3

• Rear Speeds: 7/8

• Compatible Chain: HG 7/8-speed

• Action: Top Swing, Dual-Pull

• Mounting: Clamp Band with adapters for multiple diameters

• Capacity: ~20T (difference between big and small front rings)
